Linear track light 25-30W
Product information
Power: 25-30W
Size: L309xW58xH36mm
Warranty: 5Years
Product details

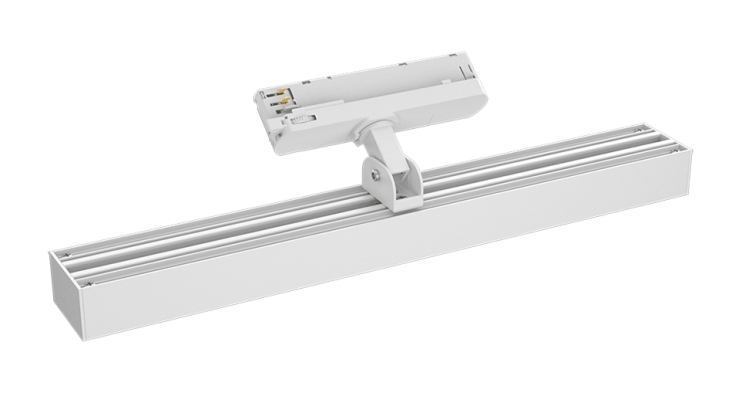

This is the 4th Generation linear LED track light, with intrack LED track adapter, we can make
the body very slim (36 mm only)
With completely new optics, lens + reflector, we can give very good lighting output, anti glare
design, very low UGR and full beam angle, 15°, 24°, 55°, 85°,Asymmetric L or R, double
Asymmetric, Asymmetric + direct lighting.
6063 brushed aluminum as body, it is better for heat dissipation and length are flexible, the
wattage from 10-45W in on intrack adapter, 50-90W with 2 intrack adapter, with DIP switch, you
can easily to get different wattage and lumen output.

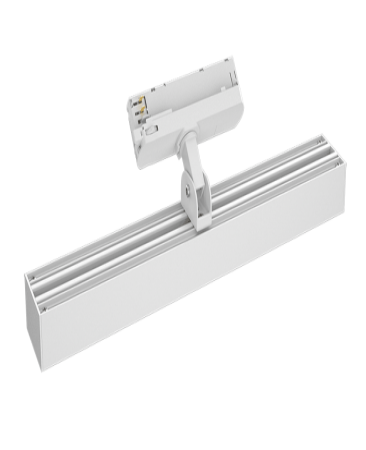

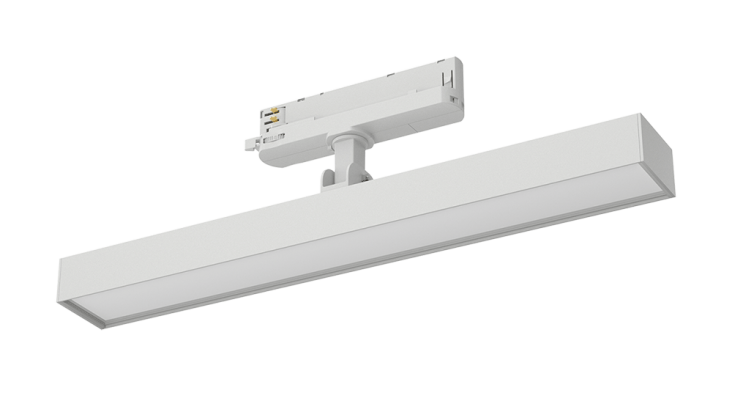

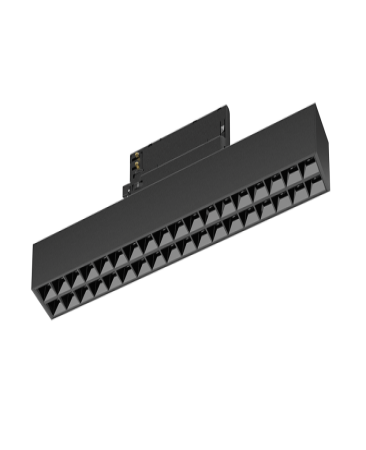

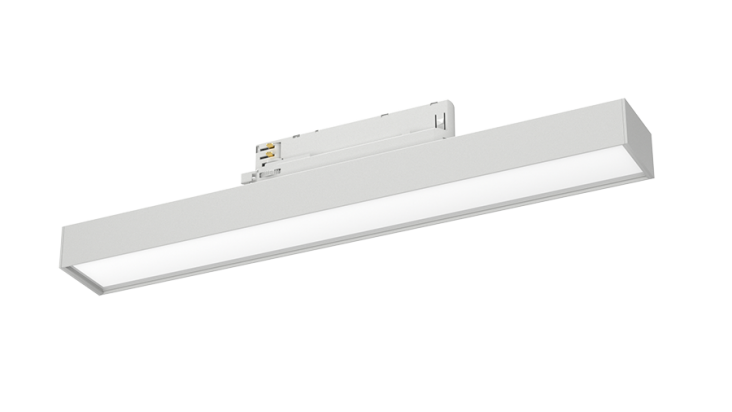

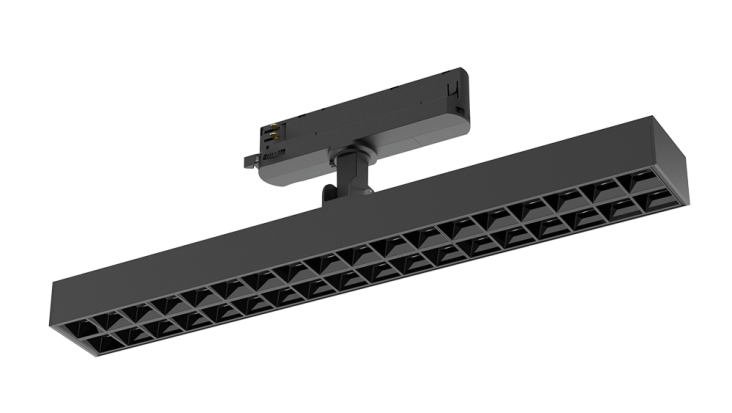

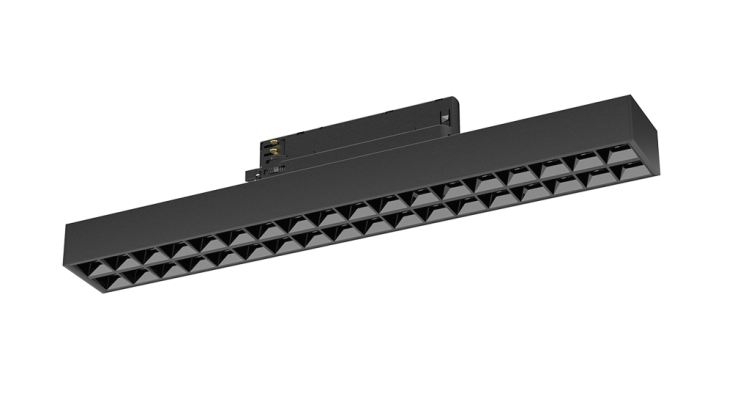

We also have 6 different fixture version for you, fixed + lens version, fixed + diffuser version,
adjustable + lens version, adjustable + diffuser version, suspended + lens version and
suspended + diffuser version, welcomed to contact us for more details. Ideal for super market,
shelf lighting and wall wash lighting.
♦ High CRI: 90+ (2700K/3000K/4000K)
♦ Good quality driver, flicker-free, PF>0.95

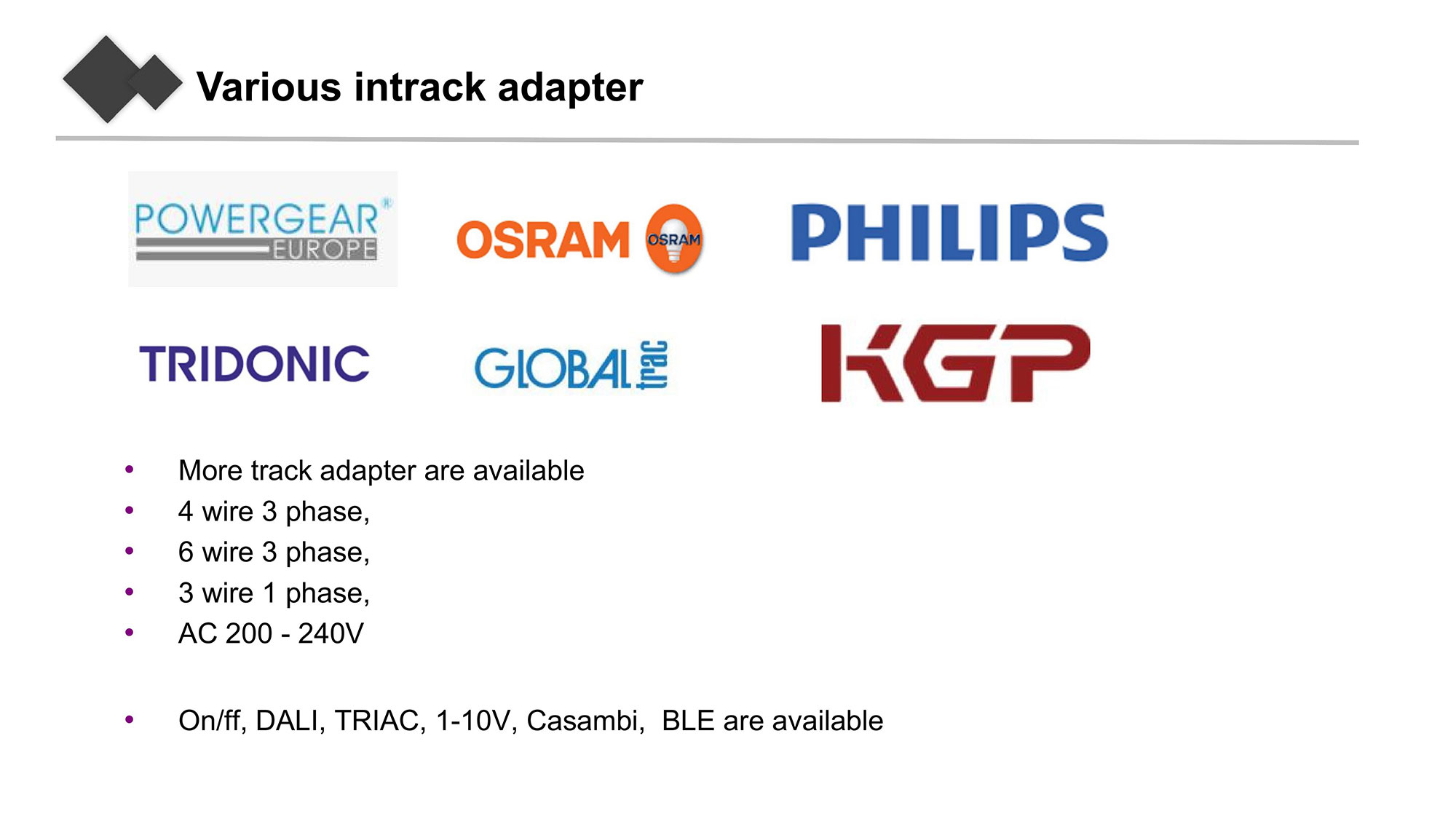

♦ 1 /2 / 3 phase universal track adapter
♦ High luminous efficiency >100lm/W @CRI80
Key Features
Can realized four version:
Datasheet
Product Code
Rated Power

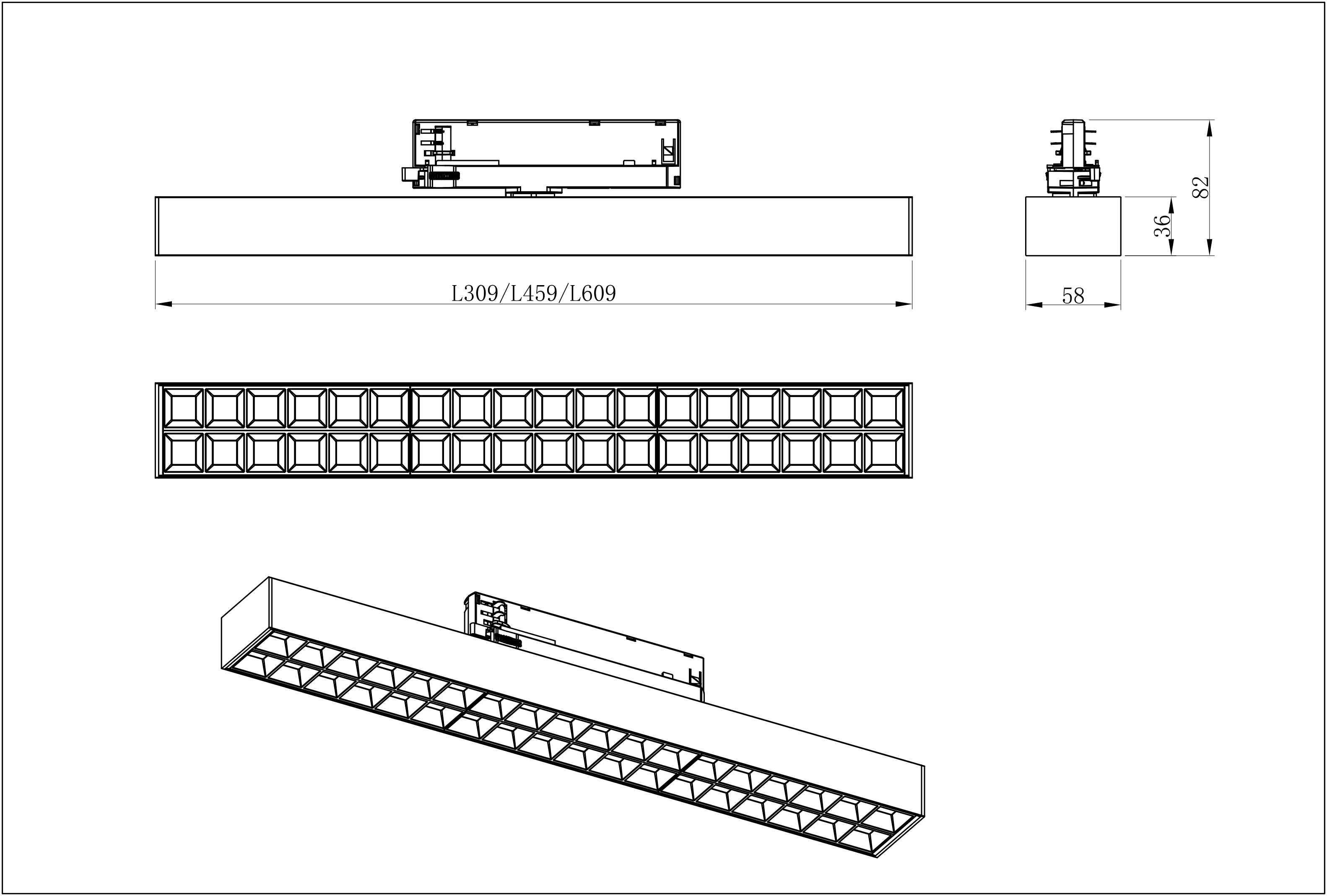

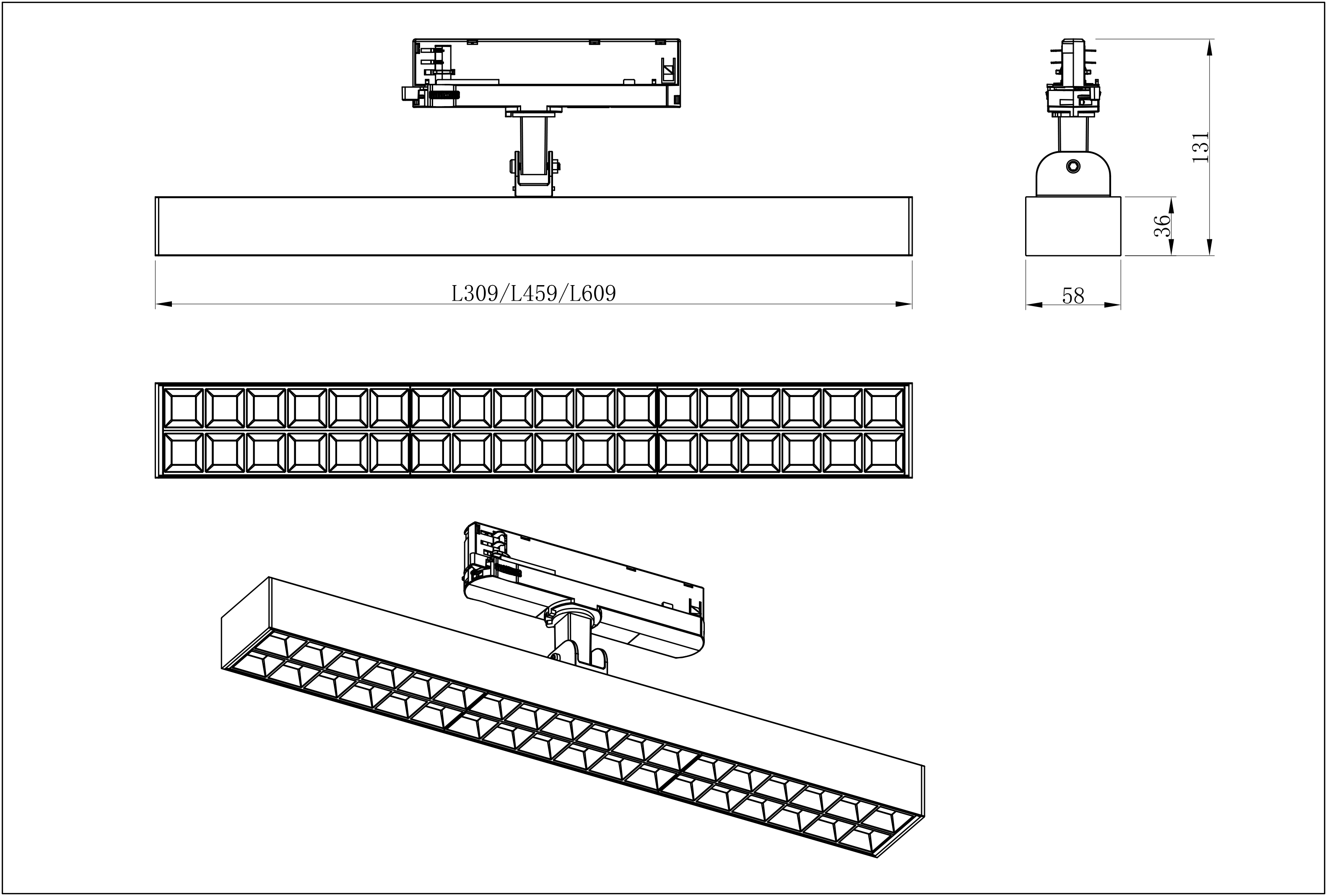

Dimension
(mm)
Beamangle
LED
Type
Input Voltage
Version
ED-LTL-25W
25W
L459xW58xH36mm
30/40/65/95°
45X71°,95X135°
SMD3030/Lens
SMD2835/Diffuser
Powergear+Osram
100-240V
Fixed+Lens
Fixed+diffuser
Adjustable+lens
Adjustable+diffuser
ED-LTL-30W
30W
L459xW58xH36mm
30/40/65/95°
45X71°,95X135°
SMD3030/Lens
SMD2835/Diffuser
Powergear+Osram
100-240V
