Current position : Index > products > NEW! H Series Track Light Wattage: 20W

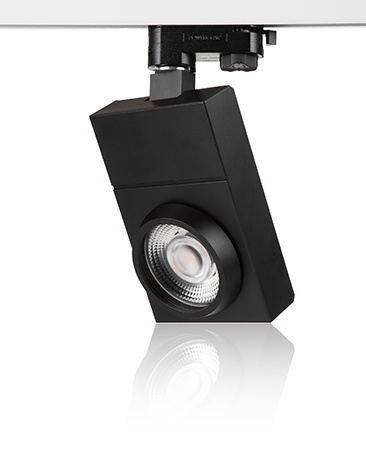

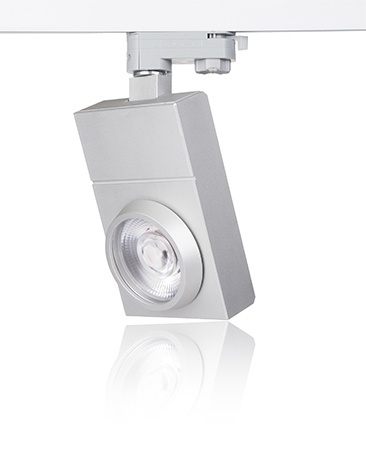

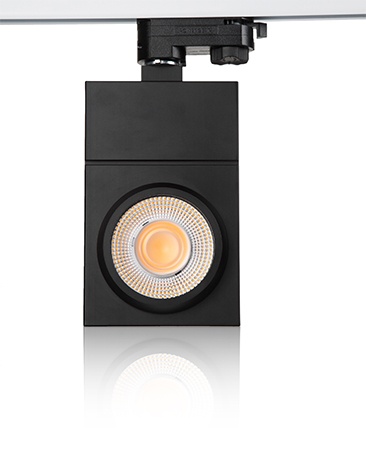

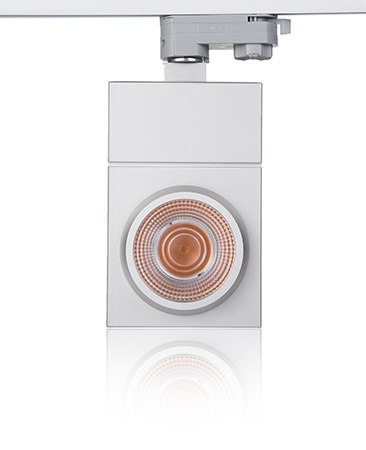

NEW! H Series Track Light
Wattage: 20W

Product information

20W LED track light
Rated Power: 20W

Lumen/CRI: 100-110lm/W @CRI80
Beamangle: 15°/24°/36°
Power Factor:PF>0.97

Enquiryback

Product details

LED Track light  Features:

6063 brushed aluminum alloy as body materials, better for heat dissipation
Citizen Version 6 COB LEDs as light sauce, higher lumen, higher CRI, lower thermal resistance
Tridonic, HEP isolated constant current LED driver, flicker free.
Super transparent lens for this lamps, can give us more choice for the beam angle and the lighting.



LED Track light Parameter:

Body materials

6063 brushed aluminum

Track adapter

Global/Powergear

Phase

3phase/1phase

Housing color

Black/White/Silver

LED brand

Citizen/CREE

LED efficiency

110-140lm/W

Color&Kelvin

2700/3000K/4000K/5000K

CRI

80+/90+/97+

Macadam

within 3 step

Beam angle

15°/24°/36°  (lens),

LED driver

Tridonic/Philips/HEP

10°/23°/36°/60°(high power lens)

Voltage

AC200-240V/AC100-240V

Power factory

>0.95

THD

<15

Dimmable

TRIAC

LED Wattage

W

Lamp wattage

20W

Work temp.

-20-45degree

Light span

50000hours



Product Code

Rated Power

Dimension

(mm)

Beamangle

Input
Voltage

LED
Type

Power Factor

Lumen

LM

CRI

ED-TL-20W-H
LED Track light

20W

107*38.5*170

15°/25°/36°

AC100-240V

AC90-130V

Citizen 1206
COB LED

PF>0.97

1200-1400LM

Ra>97

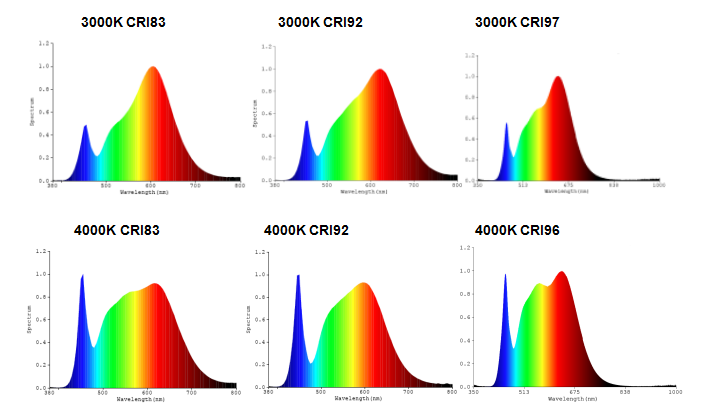

Spectrum Distribution

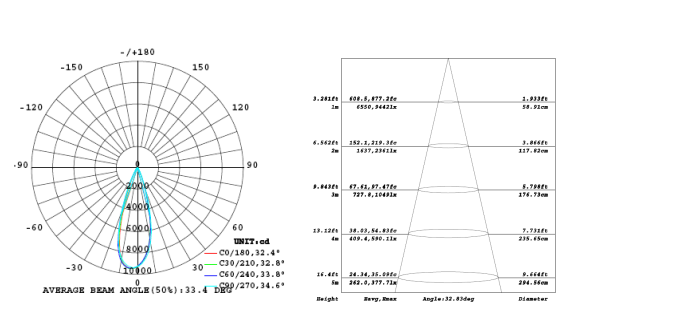

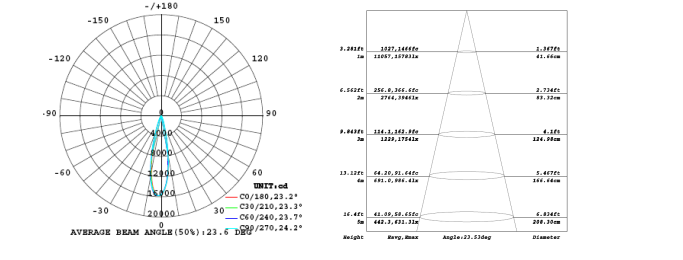

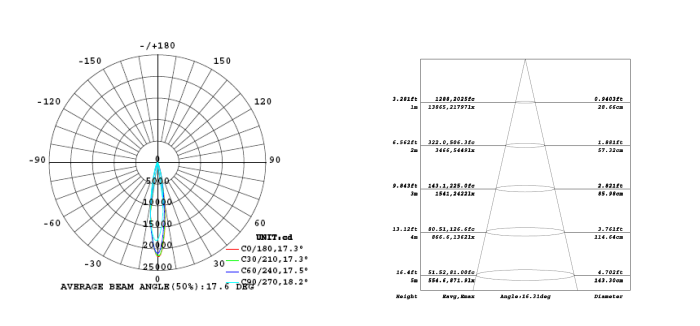

Lumen distribution diagram

15Dgeree

24Degree

36Degree

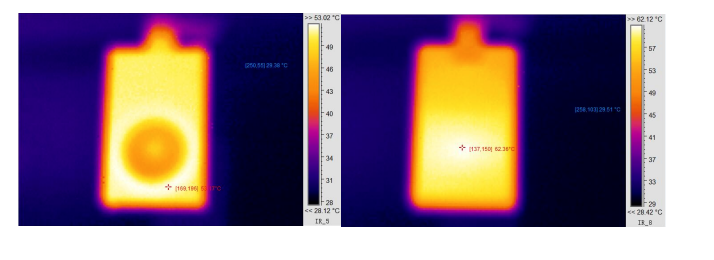

Infrared Thermography

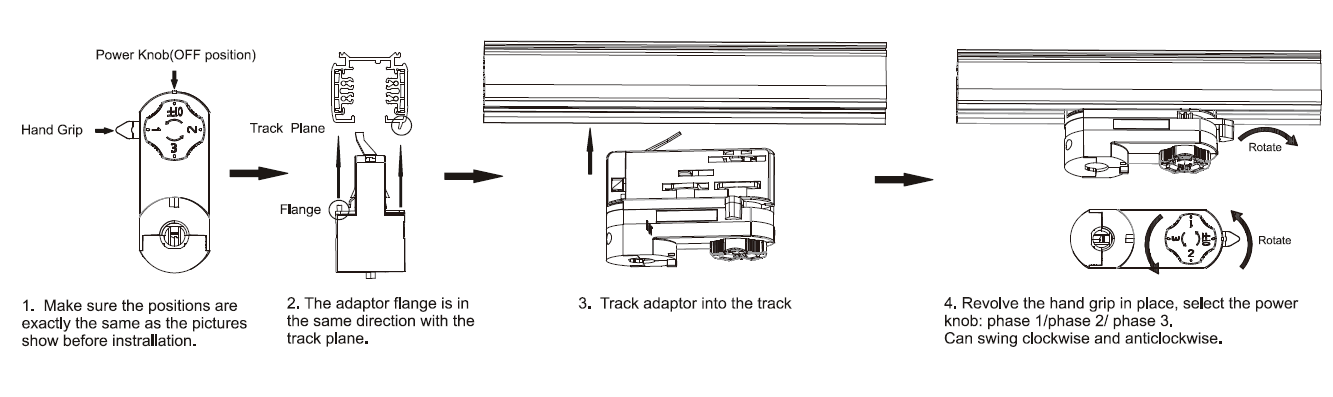

Installation manual
